15Kw/25.2kwh cabinet storage system

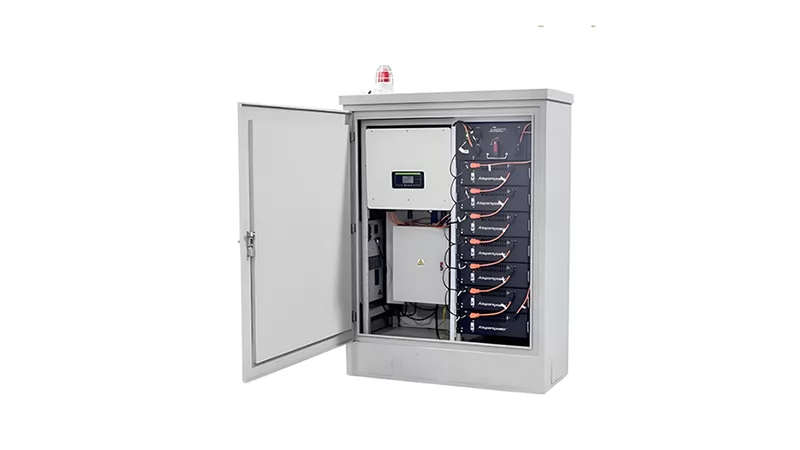

15Kw/25.2kwh Outdoor Cabinet Energy Storage System
Description
Reviews
Product features
UPS Back-up Power System
Grid-support funcons
Flexible configuration
Support PVaccess
Industrial Microgrid PowerSystem
System Built-in transformer
Bi-direconal Power Conversion
Modular designand wide power range in single cabinet
Application
Household energy storage
Commercial energy storage
Power shortage area
Large photovoltaic farm
| Datasheet | 15Kw/25.2kwh |
| Battery Input Data | |
| Battery type | Li-LFP |
| Battery voltage range | 262.5V-383.25V |
| Battery voltage range for full load | 300V-383.25V |
| Nominal charging/discharging power | 15kW |
| Max.charging/discharging current | 50A |
| Charging strategy for battery | BMS program |
| Communication interfaces | CAN(or Rs485) |
| PV String Input Data | |
| Recommened Max.PV input power | 22.5kWp(11.25kWp/11.25kWp) |
| MPPT yoltage range | 180V-960V |
| Full power MPPT voltage range | 350V-800V |
| Max,input curren | 25A/25A |
| AC Output Data (on-grid) | |
| Nominal AC power | 15kW |
| Max.AC power output to utility grid | 16500VA |
| Max.AC power from utility grid | 30000VA |
| Max.AC current output to utility grid | 24A |
| Max.AC current from utility grid | 44A |
| General Data | |
| Dimension | 1400*1200*800 mm |
| Standby self-consumption | <15W |
| Operating temperature range | 30 ℃ to +65 ℃ |
| Noise | <45dB |
| Operating altitude | <4000m |
| Protection degree | P55 |
| Strandard warranty | 5 years |
| Certlficatlons &Standards | |
| EMC | EN61000-6-1,EN61000-6-3 |
| Safety | IEC62109-1,IEC62109-2,NB-T32004/IEC62040-1 |
| Grid | AS/NZS4777,VDE V 0124-100,V0126-1-1, |
| VDE-AR-N 4105,CEI 0-16/CEI 0-21, | |
| EN50549,G98/G99,UTE C15-7 | |
| Battery | UL1973,UL1642,IEC62619,UN38.3,MSDS,CB |
