Product features
UPS Back-up Power System
Grid-support funcons
Flexible configuration
Support PV access
Industrial Microgrid Power System
System Built-in transformer
Bi-direconal Power Conversion
Modular design and wide power range in single cabinet
Application
Household energy storage
Commercial energy storage
Power shortage area
Large photovoltaic farm

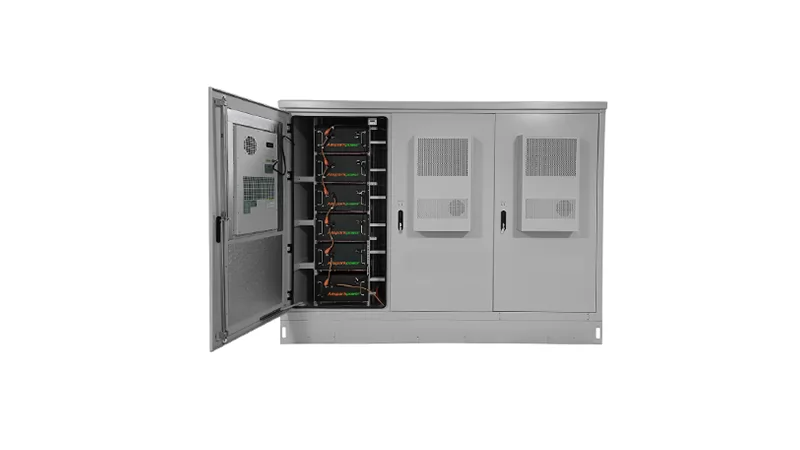

Datasheet30kw/127.4kwhAC(Grid-connected)Apparent powerRated powerRated voltageRated currentVoltage rangeRated frequencyFrequency rangeAC(Off-grid)Apparent powerRated powerRated voltageRated currentDC(Battery and PV)Max. PV open-circuit voltageBattery voltage range at maxpowerBattery voltage rangeBattery capacityMax. charge currentGeneral InformationProtection degreeNoisee missionOperating temperatureCoolingMaximum altitudeWeightSize(L*H*D)CommunicationDisplayCommunicationCertificate
| 33kVA |
| 30kW |
| 400V |
| 43A |
| 360V-440V |
| 50/60Hz |
| 45~55/55~65Hz |
| 33kVA |
| 30kW |
| 400V |
| 43A |
| 1000VDC |
| 450V-600V |
| 352V-600V |
| 127.4kwh |
| 100A |
| IP55 |
| -25°C~+55°C |
| Forced-air |
| 6000m(derate over 3000m) |
| 1540kg |
| 3600mm*2072mm*900mm |
| Touchscreen |
| RS485/CAN |
| CE,MEA,PEA,AS4777.2, EN61000-6-4:2007+A1:2011,EN61000-6-2:2005,EN62109-1:2010,EN62109-2:2011,EN50549-1:2019,IEC62109.1,IEC62109.2,NRS097-2-1:2017,G99,VDE-AR-N4105:2018,DINVDEV0124-100:2020-06UL1973;IEC62619;UN38.3;MSDS;IEC61427 |
