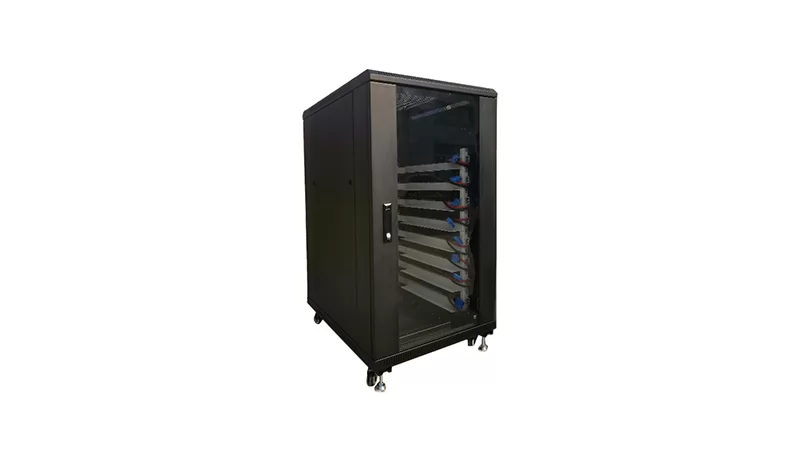

Battery cabinet

Standard 19-inch installation cabinet

Battery cabinet
Thumbnail
Get a Quote Now
Description
Reviews

Product Description

  1. Cabinet size: 18U*600*800mm;
  2. Structure: Top and bottom frame structure, front and rear door with door lock,left and right side panal removable;
  3. Doors:front single-open tempered glass door, rear double-open mesh door;
  4. Material: High quality cold rolled sheet;
  5. Sheet thickness: Standard 19-inch installation cabinet, frame 2.0mm, vertical column 2.0mm, shelves (or L-shape support)1.5mm, side plate 1.0mm, other plate 1.2mm, spray color RAL9004 black ;
  6. 8 pairs L-shape support;SPRAYING COLOUR: SURF MIST SATIN
  7. 4pcs casters and 4pcs ground foot;
  8. 2pcs Busbar(3*30*850mm),1pcs  Perspex panel (3*230*850mm)to cover the busbars;
  9. 8pcs Anderson SB50 Blue connector,10 meters 16mm2 single core red cable,10 meters 16mm2 single core black cable,16pcs copper terminals;
  10. IP degree: IP20
  11. Package: Export standard carton box + plywood pallet.
