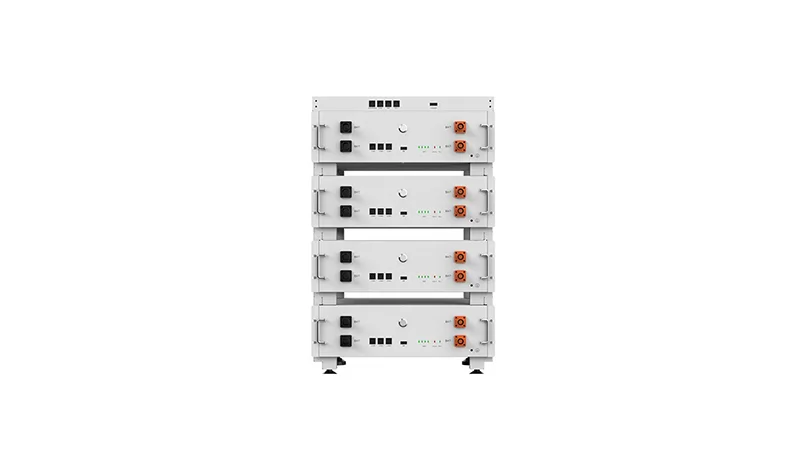

Home energy storage system (rack type)

Home energy storage system (rack type)

Home energy storage system (rack type)
Thumbnail
Get a Quote Now
Description
Reviews

Application

It is suitable for household energy storage powersupply for small-capacity access network equipment, household electricalequipmentcommercialoowerbackupequipmentand household backup power equipment.

Advantages

It had the function of central control,battery maintenance and management to meet the requirements of no one on duty: it could be monitored in real time through the mobile APP.

product name Home energy storage system (rack type)
serial number parameter item Specification Description
1 battery model HJD-HSSL-RM01 HJD-HSSL-RM02 HJD-HSSL-RM03 HJD-HSSL-RM04
2 Battery Type Lithium iron phosphate battery
3 battery capacity 100Ah 200Ah 300Ah 400Ah
4 Rated voltage 48Vdc
5 voltage range 40Vdc~54Vdc
6 Parallel quantity 1 2 3 4
7 Rated charge and discharge current 50A 100A 100A 100A
8 Maximum charge and discharge current 100A 200A 200A 200A
9 cycle life ≥2000 times@80%DOD@25℃
10 way of communication RS485/CAN
11 display screen LCD/LED display (optional)
12 Module size (W*D*H)/(for reference) Single module: 482*420*133mm
13 Module weight/(for reference) Single module: 40kg
14 degree of protection IP20
15 Relative humidity 10%~90%
16 Operating temperature 0℃~50℃, -10℃ ~50℃
17 installation method rack mount
