Intelligent, Small, and Safe Indoor Energy Storage

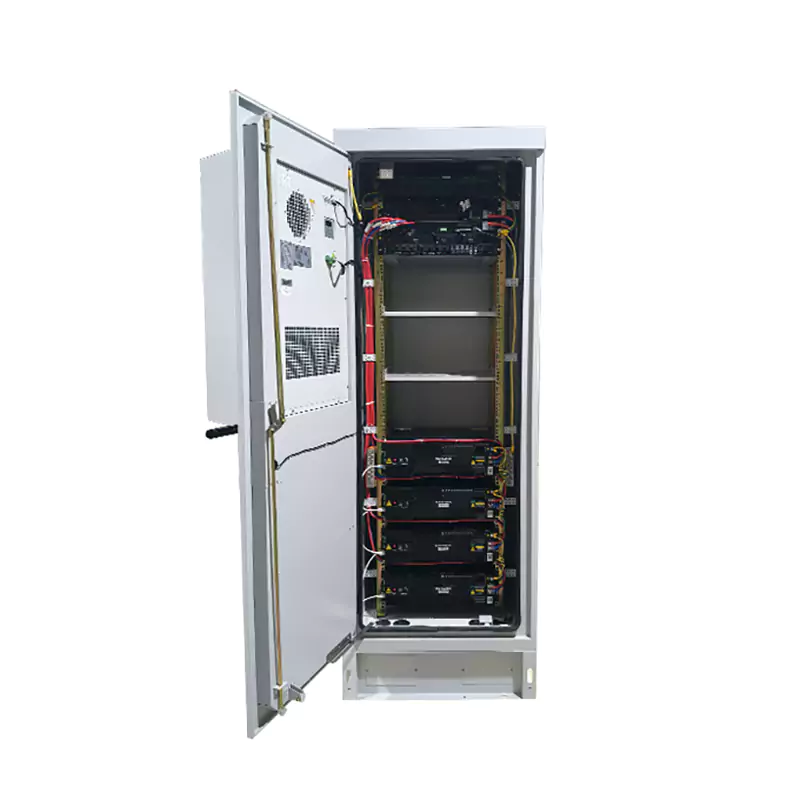

The Huijue Indoor Photovoltaic Energy Cabinet is a complete high-performance indoor energy storage solution for telecommunication, business, and industry. Through the combination of advanced LiFePO₄ batteries with smart battery management and compact design, it offers safe, reliable, and scalable energy backup for mission-critical applications.

Key Features

  • All-in-One Design: Combines battery pack, BMS, HV connection box, power distribution, temperature control, and fire protection in a single cabinet.
  • Advanced Battery Technology: LiFePO₄ cells offer high energy density, safety, and up to 6000 life cycles.
  • Smart Management: Real-time monitoring via RS485 or CAN, which allows remote diagnostics and system updates.
  • Flexible Cooling Options: Choose air conditioning, heat exchange, or natural air cooling.
  • Modular Capacity: Allows capacity extension from 100kWh to 300kWh.
  • Safety First: Dual protections against overvoltage, short circuit, overheating, and optional fire suppression system (perfluorohexanone).

Application Scenarios

  • Telecom base stations & edge data centers
  • Industrial peak shaving and backup
  • Solar energy storage and smart microgrids
  • Indoor commercial power management

Technical Specifications

Parameter Specification
Battery Type LiFePO₄ (Lithium Iron Phosphate)
Usable Capacity 100kWh – 300kWh (Modular)
Rated Voltage Range 420V – 1000V DC
Max Discharge Power Up to 150 kW
Cycle Life ≥6000 cycles (80% DOD, 25°C)
Cooling Options Air conditioning / Heat exchange / Air cooling
Fire Suppression Optional (Perfluorohexanone)
Communication Interfaces CAN, RS485
Protection Rating IP54 (Cabinet), IP20 (Electrical compartment)
Operating Temperature -30°C to +55°C
Humidity Range 5% – 95% RH (non-condensing)
Installation Method Indoor, floor-standing
Monitoring System Integrated EMS & remote access
