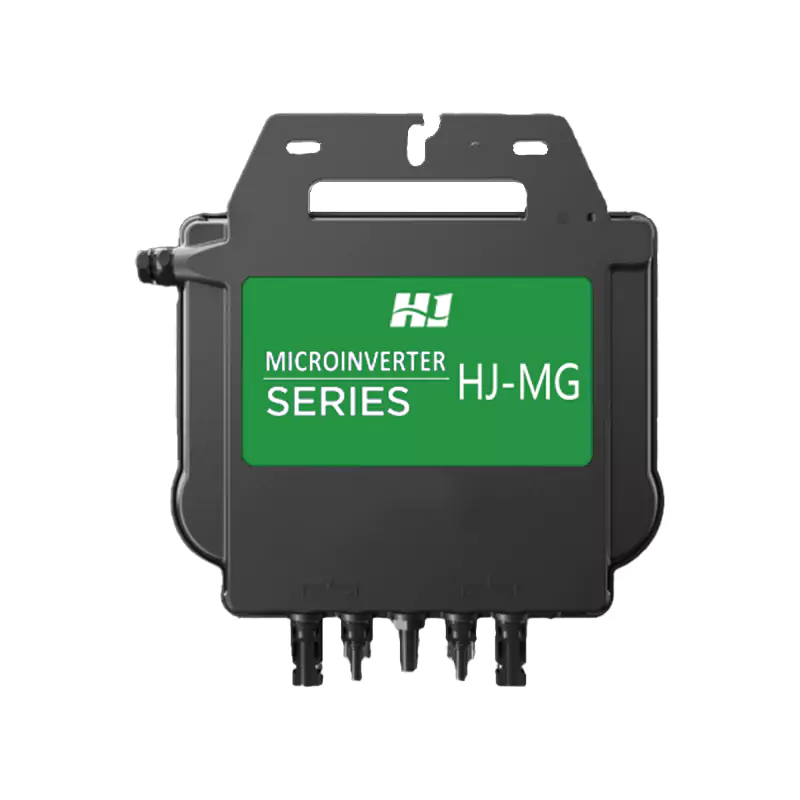

Single-Phase Micro Inverter
Description
Reviews
The Huijue Single-Phase Micro Inverter is engineered to offer effective and stable solar power conversion for residential and light commercial applications. Its compact size and advanced technology make it the ideal choice for modern solar installations.
Key Features
- Dual Module Connectivity: Can connect up to two photovoltaic (PV) modules per unit, achieving maximum energy harvesting and system flexibility.
- High Output Efficiency: Delivers a maximum AC output power of 800W, ensuring highest energy conversion for your solar panels.
- Integrated Monitoring: Wi-Fi connectivity and cloud monitoring allow real-time monitoring of performance and control of the system.
- Scalable Design: Supports up to 10 units per branch on a 230V configuration, making expansion for growing energy needs simple.
- Wide Input Voltage Range: Compatible with various DC input voltages, allowing easy support for varied PV modules.
- Plug-and-Play Installation: Equipped with an integrated AC bus cable, reducing installation effort and time.
- Strong Construction: Featuring an IP66-rated weatherproof case, the product can offer assured operation under diverse environmental conditions.
Applications
Most suitable for roof top installation, balcony solar installation, and other small-scale residential or business solar applications. The Huijue Single-Phase Micro Inverter offers a safe method of realizing maximum utilization of solar power and achieving energy independence.
Technical Specifications
| DC Input | |
| Recommended Array Power Range | 315Wp-660Wp+ |
| MPPT Voltage Range | 56V-90V |
| Operating Voltage Range | 52V-118V |
| Max DC Input Voltage | 118V |
| Max DC Input Current | 20Ax2 |
| Max DC Short-Circuit Current | 25Ax2 |
| AC Output | |
| Rated Output Power | 1900W |
| Max Output Power | 2000W |
| Rated Output Voltage/Default Output Voltage Range | 220V/ 187V-242V |
| Max Output Current | 8.6A |
| Rated Output Frequency/Default Output Frequency Range | 50Hz/47.5Hz-50.5Hz |
| Power Factor | >0.99 |
| Efficiency | |
| Max Efficiency | 97% |
| MPPT Tracking Efficiency | 99.50% |
| Night Loss | 20mW |
| Mechanical Data | |
| Operating Temperature Range | -40℃ to +65℃ |
| Storage Temperature Range | -40℃ to +85℃ |
| Dimensions (L×W×H) | 283 mm x 233 mm x 39.5 mm |
| Weight | 4.2kg |
| DC Connection Type | Staubli MC4 PV-ADBP4-S28ADSP4-S2 |
| AC Extension Cable | Customer Provided* |
| Cooling | Natural convection (no fan) |
| Protection Level | IP67 |
| Pollution Degree | PD3 |
| Working Relative Humidity Range | 4%-100% |
| Max Altitude | <2000m |
| Overvoltage Category | PV input circuit OVC II, Power supply circuit OVC III |
| Features | |
| Communication | Built-in Wi-Fi and Bluetooth |
| Isolation Design | High-frequency transformer, AC isolation |
| Energy Management** | AP EasyPower application software |
| Warranty | Standard 12 years |
| Compliance | |
| Safety, EMC and Grid Compliance | NB/T 32004:2018 |
