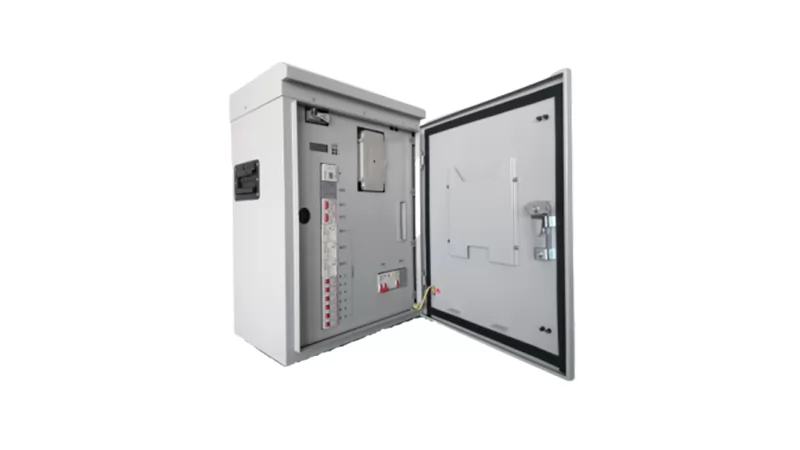

Small smart energy cabinet
Small smart energy cabinet
Description
Reviews
Product Description
Small smart energy cabinet HJ-SG-S type: tower/wall-mounted installation, small size, modular design, this series of products can integrate photovoltaic, wind clean energy, energy storage batteries, configuration 2U integrated hybrid power system, output DC48V ( Including intelligent circuit breaker), including ODF module, FSU monitoring module integrated product. Optical storage capacity of this system: 900W/5KWH;
| product specification | physical dimension | 400mm(W)×500mm(D)×700mm(H) IP55 protection |
| installation mode | tower, wall | |
| Cooling solution | Intelligent temperature control (speed-adjustable fan, with Rs communication interface) | |
| AC input | AC input voltage | Single-phase/three-phase 380VAC input (two-way input interlocking) |
| rectifier module | 50A*2, fully equipped with 150A | |
| Photovoltaic input | Photovoltaic module capacity | 450Wp*2 blocks; =900WP |
| Photovoltaic module | 50A(3000W) | |
| wind power | wind power | 300W~1000W |
| Fan Control Module | 2KW | |
| Energy storage backup | Lithium iron phosphate battery | 100AH, 51.2V; energy storage 5KWH |
| output characteristics | DC output voltage | 432VDC~58VDC (default 535VDC) |
| output configuration | Battery: 1*125A; DC: 63A*1, 32A*2, 16A*5 AC: input 32A*2, lightning protection class C; socket: 2 channels; | |
| Monitoring unit system | signal input | 1-way analog input (battery temperature); 4-way digital dry contact input |
| Alarm output | 4 dry contacts | |
| Communication Interface | RS485 | |
| storage | Up to 1000 historical alarm records | |
| sensor | Temperature and humidity, smog, access control, water immersion | |
| environment | Operating temperature | -20~+75°C (-40°C can be started) |
| storage temperature | -40℃~+75℃ | |
| Working humidity | 5%~95%(no condensation) | |
| Altitude | ≤4000m (1800m~4000m, every time the altitude rises by 200m, the temperature will decrease by 1ºC.) |
