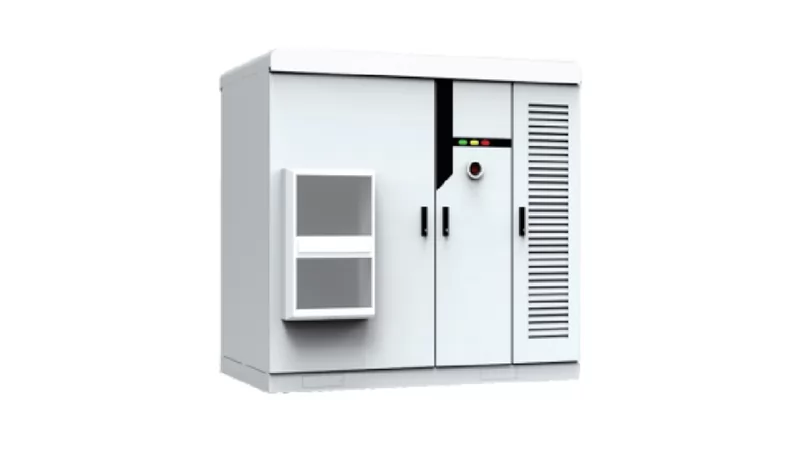

Smart Energy Storage Cabinet System
IP55 protection level, can withstand various climatic environments
Description
Reviews
Product Description
Outdoor energy storage cabinet HJ-SG-C type: This series of products has built-in PCS, EMS, on-grid switching unit, power distribution unit, temperature control system, BMS system, fire protection system, anti-surge device, etc. Cabinet design, easy to transport. This product supports power output of 30KW~90KW, and the system capacity is 100KWH-300KWH. It supports parallel connection of multiple machines and can be flexibly expanded.
Features
- The structure is simplified, the space requirement is small, the layout is flexible, and it is easy to install, operate and maintain
- Built-in fire protection, temperature control, and early warning systems for multiple safety guarantees
- Single-cluster management, intelligent operation and maintenance, and control at will
- IP55 protection level, can withstand various climatic environments
| DC parameters | battery capacity | 100kWh~300kWh |
| DC voltage range | 400V~1000V | |
| AC side parameters | Rated AC power | 30kW~150kW |
| Rated AC current | 43A~216A | |
| Rated grid voltage | 400V | |
| Allowable grid voltage range | 305V~485V | |
| Rated grid frequency | 50/60Hz | |
| isolation method | with isolation | |
| Energy Storage Cabinet Parameters | degree of protection | IP54 |
| Fire Fighting System | Perfluorohexanone fire extinguishing agent | |
| Operating temperature range | -30℃～55℃ | |
| Dimensions W*D*H | Single cabinet combined type, whole machine integrated type, optional | |
| BMS communication method | CAN, RS485 | |
| PCS cooling method | Temperature control intelligent air cooling | |
| battery cell cooling | Air conditioner/heat exchange all-in-one cooling | |
| highest altitude | 4500m (>3000 need derating) |
