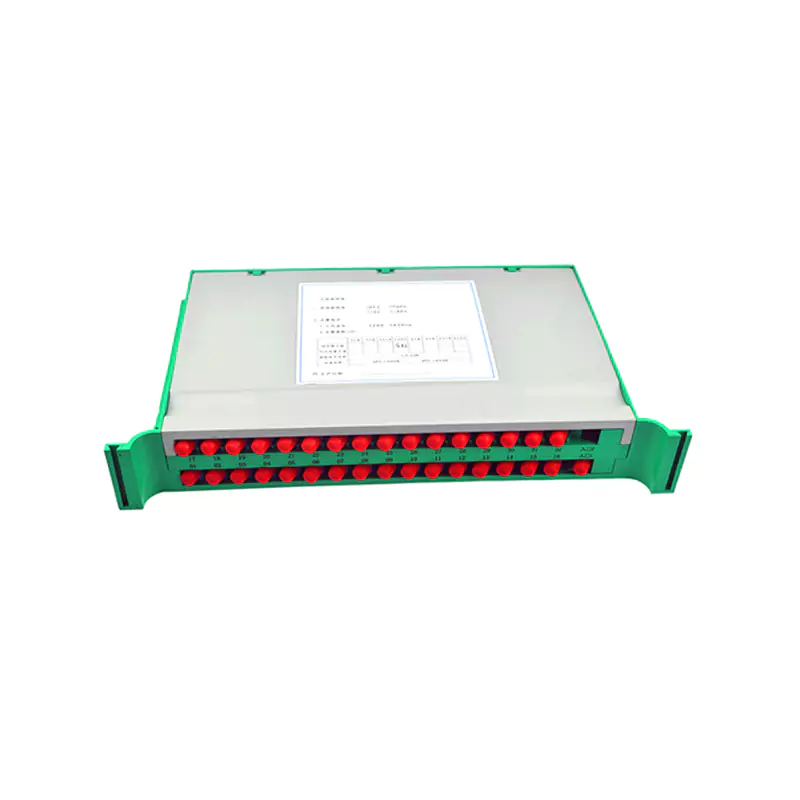

The Subframe Optical Splitter is designed for high-density optical signal distribution in fiber optic communication networks. It fits a 19-inch standard rack and integrates a rack-mounted chassis with a cassette-type PLC optical splitter, providing an organized and space-efficient solution for fiber distribution.
Available in multiple splitting ratios, including 1×4, 1×8, 1×16, 1×32, and 1×64, this optical splitter supports different network capacity requirements. It is suitable for FTTH, FTTx, PON networks, telecommunications equipment rooms, and optical distribution systems.
Key Features
- Standard 19-Inch Rack Mounting: Designed for direct installation in standard telecommunications racks.
- High-Density Fiber Distribution: Supports multiple splitter configurations to accommodate different network requirements.
- PLC Splitting Technology: Provides consistent optical signal distribution across multiple output ports.
- Durable Chassis: Constructed from aluminum-zinc-magnesium coated steel sheet for practical equipment protection.
- Compact Cassette Design: Uses a miniature ABS splitter enclosure to facilitate integration and fiber management.
- Reliable Optical Connections: High-precision ceramic ferrules and adapter sleeves help maintain stable optical connections.
- Flexible Configuration: Supports different connector interfaces, polishing types, splitter ratios, and packaging options.
Applications
- Fiber-to-the-home (FTTH) networks
- Fiber-to-the-building (FTTB) and FTTx access networks
- GPON and EPON passive optical networks
- Optical distribution frames (ODF)
- Telecommunications equipment rooms
- Fiber optic cross-connect systems
- Central office and broadband distribution networks
Technical Specifications
| Product Name | Subframe Optical Splitter |
| Splitter Technology | PLC (Planar Lightwave Circuit) |
| Mounting Type | 19-Inch Standard Rack Mount |
| Rack Unit Height | 1U standard configuration; 1×64 and 2×64 models require a taller enclosure |
| Available Split Ratios | 1×4, 1×8, 1×16, 1×32, 1×64, 2×4, 2×8, 2×16, 2×32, 2×64 |
| Operating Wavelength | 1260–1650 nm |
| Insertion Loss (1×4) | ≤ 7.4 dB |
| Insertion Loss (1×8) | ≤ 10.5 dB |
| Insertion Loss (1×16) | ≤ 13.8 dB |
| Insertion Loss (1×32) | ≤ 17.1 dB |
| Insertion Loss (1×64) | ≤ 20.4 dB |
| Insertion Loss (2×4) | ≤ 7.7 dB |
| Insertion Loss (2×8) | ≤ 10.8 dB |
| Insertion Loss (2×16) | ≤ 14.1 dB |
| Insertion Loss (2×32) | ≤ 17.4 dB |
| Insertion Loss (2×64) | ≤ 20.6 dB |
| Polarization-Dependent Loss | ≤ 0.2 dB for 1×4 and 1×8; ≤ 0.3 dB for higher split ratios |
| Return Loss | PC: ≥ 45 dB; UPC: ≥ 50 dB; APC: ≥ 55 dB |
| Uniformity | Maximum 0.7–2.0 dB, depending on split ratio |
| Directivity | ≥ 55 dB |
| Chassis Material | Aluminum-zinc-magnesium coated steel sheet |
| Splitter Cassette Material | ABS |
| Adapter and Connector Material | PBT plastic for SC and LC configurations |
| Ferrule and Adapter Sleeve Material | High-precision ceramic |
| Dimensions (1×4 to 1×32) | 430 × 199 × 44 mm |
| Dimensions (1×64) | 430 × 220 × 87 mm |
| Dimensions (2×4 to 2×32) | 430 × 199 × 44 mm |
| Dimensions (2×64) | 430 × 220 × 87 mm |
| Connector Options | FC, SC, LC, ST, or customized |
| Connector Polish | PC / UPC / APC, depending on configuration |
| Brand | Huijue Group |
Product Description
The Subframe Optical Splitter combines a rack-mounted chassis with a cassette-type PLC splitter to simplify optical signal distribution and fiber management. It divides an incoming optical signal into multiple outputs, allowing a single feeder fiber to serve multiple network endpoints in passive optical access systems.
The chassis is made from aluminum-zinc-magnesium coated steel sheet, while the internal splitter cassette uses ABS material. High-precision ceramic ferrules and adapter sleeves support reliable optical connections, making the assembly suitable for telecommunications equipment rooms and centralized fiber distribution installations.
Multiple splitting ratios are available to accommodate different subscriber capacities and network architectures. The appropriate configuration depends on the required output count, optical link budget, connector interface, and rack space available at the installation site.
Configuration Options
The Subframe Optical Splitter can be configured with different splitter ratios, connector interfaces, and polishing types to match specific network requirements. Available connector options include FC, SC, LC, and ST, with PC, UPC, or APC configurations depending on the selected connector.
When selecting a model, consider the required splitter ratio, insertion loss, return loss, operating wavelength, rack dimensions, and compatibility with existing optical distribution equipment. The 1×64 and 2×64 configurations use a taller enclosure than the standard 1U models.
